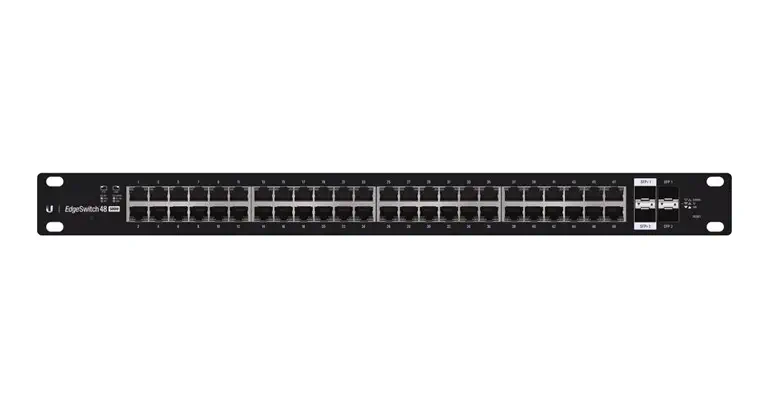

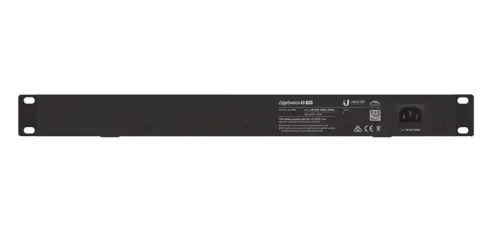

Ubiquiti EdgeSwitch ES-48-500W 48 Port 10/100/1000Mbps Gigabit PoE+ 2SFP/2SFP+ Yönetilebilir Switch

Ubiquiti EdgeSwitch ES-48-500W 48 Port 10/100/1000Mbps Gigabit PoE+ 2SFP/2SFP+ Yönetilebilir Switch
Ubiquiti EdgeSwitch ES-48-500W 48 Port 10/100/1000Mbps Gigabit PoE+ 2SFP/2SFP+ Yönetilebilir Switch

Ubiquiti EdgeSwitch ES-48-500W 48 Port 10/100/1000Mbps Gigabit PoE+ 2SFP/2SFP+ Yönetilebilir Switch Genel Özellikler

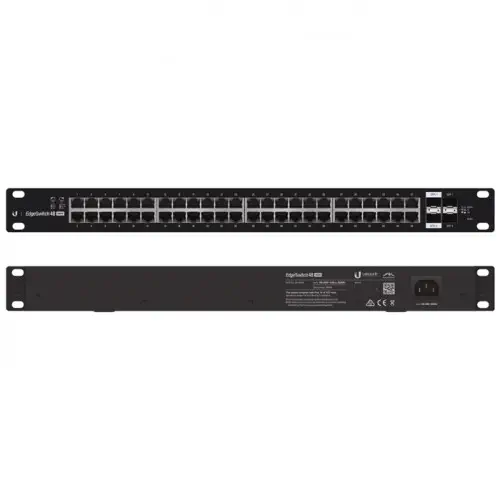

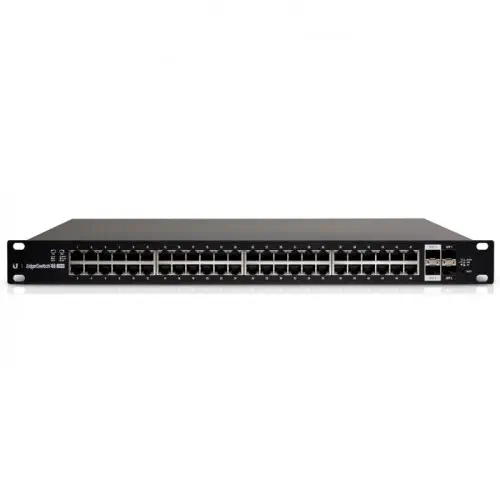

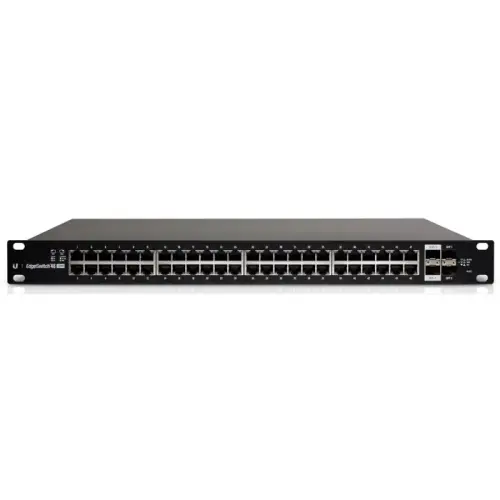

Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Ubiquiti EdgeSwitch ES-48-500W Yönetilebilir Switch
  • 48 adet Gigabit Ethernet RJ45 portu
  • 2 adet SFP+ portu
  • 2 adet SPF portu
  • Otomatik algılamalı IEEE 802.3af/at PoE
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Ubiquiti EdgeSwitch Yönetilebilir PoE+ Gigabit Switch 48 RJ45 Gigabit porta sahip EdgeSwitch ES-48-500W, geniş çaplı ağ altyapıları için PoE+ desteği, akıllı yönetim ve güçlü performans sunar.
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Güçlü Kurumsal Switch Modelleri EdgeSwitch, tüm portlardan herhangi bir paket kaybı olmaksızın ve eş zamanlı olarak, 24 portlu modellerde 26Gb/sn’ye ve 48 portlu modellerde ise 70Gb/sn’ye kadar gerçek bant genişliği sağlar.
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch
Kurumsal İhtiyaçlara Yönelik Özellikler Geniş çaplı kurumsal ağ ihtiyaçlarını karşılamak için tasarlanmış olan Ubiquiti EdgeSwitch ES-48-500W, Layer-2 ve Layer-3 standartlarını destekleyen gerçek yönetilebilir switch özellikleri ile birlikte gelir.
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch
10 Gbps SFP+ EdgeSwitch ES-48-500W, yüksek kapasiteli bağlantılar için 802.3 af/at ve 24V Pasif PoE standartlarında 48 adet Gigabit Ethernet portu, 2 adet SPF+ (10Gbps) ve 2 adet SFP portu ile gelmektedir.
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

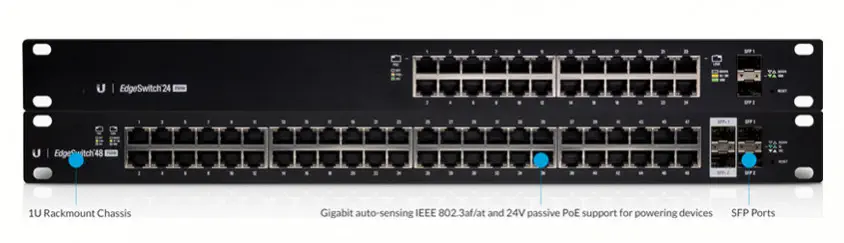

Gigabit PoE+ Desteği EdgeSwitch, ağdaki birden fazla cihazı çalıştırmak için otomatik algılamalı IEEE 802.3af/at ve 24V pasif PoE desteğine sahiptir. EdgeSwitch üzerine 802,3af standartlarını destekleyen ürün bağlarsanız EdgeSwitch bu cihazı otomatik olarak algılar ve bağladığınız cihazlara doğrudan voltaj verir, eğer bağladığınız ürün 24 Pasif PoE standartlarını destekliyorsa, EdgeSwitch'in yönetim arayüzünden bağlantı yaptığınız portun 24V PoE desteğini etkinleştirmeniz gerekmektedir.
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

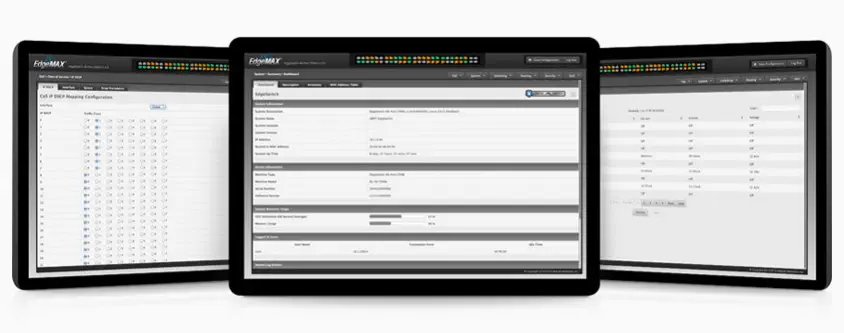

Kapsamlı Kullanıcı Arayüzü Kullanımı kolay ve ergonomik bir yönetim imkânı sunmak için tasarlanan kapsamlı grafiksel kullanıcı arayüzü, ağınızın yapılandırma ve takip ihtiyaçlarına hızlı bir şekilde cevap verir. Bunun yanısıra ileri düzey kullanıcılar için daha ayrıntılı yapılandırma özellikleri komut satırı (CLI) üzerinden sunulmaktadır.



•MSTP/RSTP/STP, • VLAN, Private VLAN, Voice VLAN,VLAN Trunk, • Link Aggregation, • DHCP Server,DHCP Snooping, IGMP Snooping, • TACACS+, Radius,802,1X, MAC Filtering, ACL, • Diffserv, CoS, • Static Routing, Policiy Based Routing özelliklerini sunan gelişmiş işletim sistemi, Basit switch özellikleri ve Port bazlı bazlı PoE tercihlerini hızlıca yapılandırma imkanı sunmaktadır.
Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch

Teknik Özellikler
Model ES-48-500W
Gigabit RJ45 Port 48 adet
SFP+ Port 2 adet
SFP Port 2 adet
Boyutlar 485 x 43.7 x 374.6 mm
Ağırlık 6.1 Kg
Toplam Bant Genişliği (Bloklanmayan) 70 Gbps
Anahtarlama Kapasitesi 140 Gbps
İletim Hızı 104.16 Mpps
Maks. Güç Tüketimi PoE Çıkışı Dahil: 500W / PoE Çıkışı Hariç: 64W
Güç Yöntemi 100-240VAC/50-60 Hz, Universal Input
Güç Kaynağı AC/DC, Dahili, 500W DC
LED’ler (RJ45 Data Portları) PoE, Hız/Bağlantı/Etkinlik
LED’ler (SFP+/SFP Data Portları) Hız/Bağlantı/Etkinlik
Ağ Arayüzleri (48) 10/100/1000 Mbps RJ45 Ethernet Port, (2) 1/10 Gbps SFP+ Ethernet Port, (2) 1 Gbps SFP Ethernet Port
Sertifikasyonlar CE, FCC, IC
Montaj Rackmount, 1U High
ESD/EMP Koruması Air: ±24 kV, Contact: ±24 kV
Çalışma Sıcaklığı -5 ~ 40° C (23 ~ 104° F)
Çalışma Nemi 5 ~ 95% Yoğuşmasız
Darbe ve Titreşim ETSI300-019-1.4 Standart
PoE Özellikleri
PoE Arayüzleri POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), 24VDC Pasif PoE (Pins 4, 5+; 7, 8-)
PoE+ İçin Port Başına Maks. Watt Desteği 34.2W
802.3at Modu Voltaj Aralığı 50–57V
Pasif PoE İçin Port Başına Maks. Watt Desteği 17W
24V Pasif PoE Voltaj Aralığı 20-27V
Yazılım Özellikleri
Temel Switch Özellikleri • ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED) • IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) • IEEE 802.1D: Spanning Tree Compatibility • IEEE 802.1S: Multiple Spanning Tree Compatibility • IEEE 802.1W: Rapid Spanning Tree Compatibility • IEEE 802.1Q: Virtual LANs with Port-Based VLANs • IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping • IEEE 802.1X: Port-Based Authentication with Guest VLAN Support • IEEE 802.3: 10BASE-T • IEEE 802.3u: 100BASE-T • IEEE 802.3ab: 1000BASE-T • IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol • IEEE 802.3ac: VLAN Tagging • IEEE 802.3ad: Link Aggregation • IEEE 802.3x: Flow Control • IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (G) • IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP) • IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP) • RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
Gelişmiş Layer-2 Özellikleri • Broadcast Storm Recovery • Broadcast/Multicast/Unknown Unicast Storm Recovery • DHCP Snooping • IGMP Snooping Querier • Independent VLAN Learning (IVL) Support • Jumbo Ethernet Frame Support • Port MAC Locking • Port Mirroring • Protected Ports • Static MAC Filtering • TACACS+ • Voice VLANs • Unauthenticated VLAN • Internal 802.1X Authentication Server
Platform Özellikleri • DHCP Server • Maximum Number of Pools: 128 • Maximum Number of Leases (Total): 2048 • Routing • Number of Routes: 16 • Number of Routing Interfaces: 15 • VLANs: 4093 • MAC Addresses: 16,384 • ARP Cache Size: 493 • MSTP Instances: 4 • LAGs: 6 • ACLs: 100 with 10 Rules per Port • Traffic Classes (Queues): 8
Sistem Kolaylıkları • Event and Error Logging Facility • Run-Time and Configuration Download Capability • PING Utility • FTP/TFTP Transfers via IPv4/IPv6 • Malicious Code Detection • BootP and DHCP • RFC 2021: Remote Network Monitoring Management Information Base Version 2 • RFC 2030: Simple Network Time Protocol (SNTP) • RFC 2819: Remote Network Monitoring Management Information Base • RFC 2865: RADIUS Client • RFC 2866: RADIUS Accounting • RFC 2868: RADIUS Attributes for Tunnel Protocol Support • RFC 2869: RADIUS Extensions • RFC 3579: RADIUS Support for EAP • RFC 3580: IEEE 802.1X RADIUS Usage Guidelines • RFC 3164: BSD Syslog Protocol
Yönetim • Web UI • Industry-Standard CLI • IPv6 Management • Password Management • Autoinstall Support for Firmware Images and Configuration Files • SNMP v1, v2, and v3 • SSH 1.5 and 2.0 • SSL 3.0 and TLS 1.0 • Secure Copy (SCP) • Telnet (Multi-Session Support)
Layer-3 Yönlendirme • Statik Yönlendirme
QoS • Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on: • Time-Based ACL • Source/Destination IP Address • TCP/UDP Source/Destination Port • IP Protocol Type • Type of Service (ToS) or Differentiated Services (DSCP) Field • Source/Destination MAC Address • EtherType • IEEE 802.1p User Priority • VLAN ID • RFC 1858: Security Considerations for IP Fragment Filtering • Optional ACL Rule Attributes • Assign Flow to a Specific Class of Service (CoS) Queue • Redirect Matching Traffic Flows • Differentiated Services (DiffServ) • Classify Traffic Based on Same Criteria as ACLs • Mark the IP DSCP or Precedence Header Fields, Optional • Police the Flow to a Specific Rate with Two-Color Aware Support • RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers • RFC 2475: An Architecture for Differentiated Services • RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group • RFC 3246: An Expedited Forwarding PHB • RFC 3260: New Terminology and Clarifications for DiffServ • Class of Service (CoS) Queue Mapping Configuration • AutoVoIP: Automatic CoS Settings for VoIP • IP DSCP-to-Queue Mapping • Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted) • Interface Egress Shaping Rate • Strict Priority versus Weighted Scheduling per Queue

Ubiquiti EdgeSwitch ES-48-500W 48 Port Yönetilebilir Switch Özellikleri

Genel Özellikler

Tipi Switch
Switch Yapısı Yönetilebilir Switch
Desteklediği Standartlar IEEE 802.3ac, IEEE 802.1s, IEEE 802.1d, IEEE 802.3u, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1p, IEEE 802.3x, IEEE 802.1ak, IEEE 802.1x, IEEE 802.3af, IEEE 802.1q, IEEE 802.3ab, IEEE 802.3, IEEE 802.3at
Boyut 485 x 43.7 x 374.6 mm
Sertifikalar CE, FCC, IC
Garanti 24 Ay Garanti

Teknik Özellikler

Switch Tipi Gigabit
Port Sayısı 48 x Gigabit Ethernet RJ45 Port / 2 x SFP+ Port / 2 x SPF Port
Veri Transfer Hızı 10/100/1000 Mbps
